Solution Delivery for Industrial-Class Gimbal

Since we offer gimbal kits with our motors (optional models) and modular boards, we can easily assemble an industrial-class gimbal.

Key Features:

1. Primarily suitable for three-axis gimbal stabilization systems;

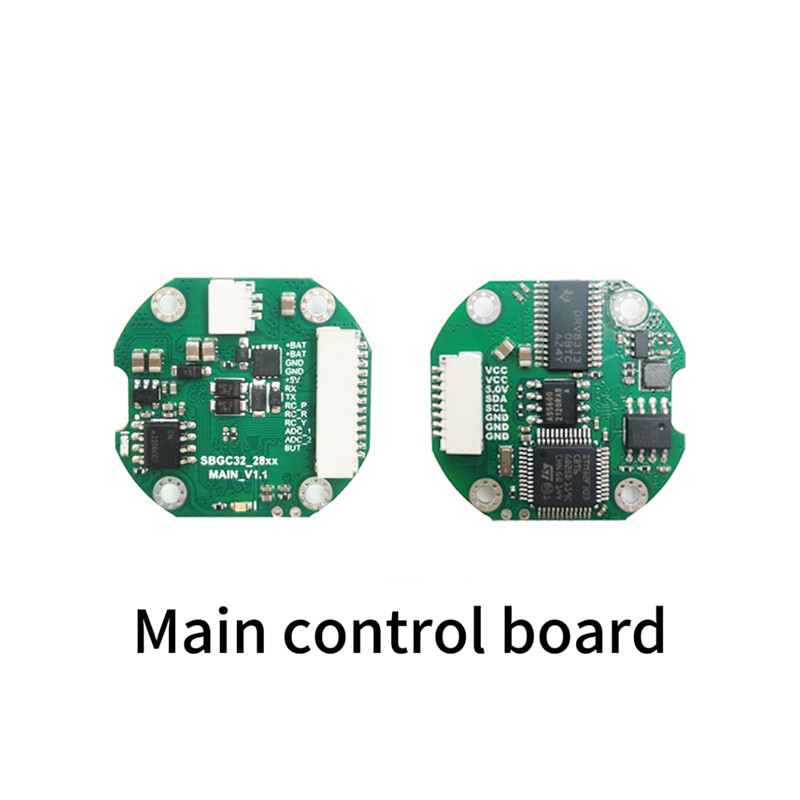

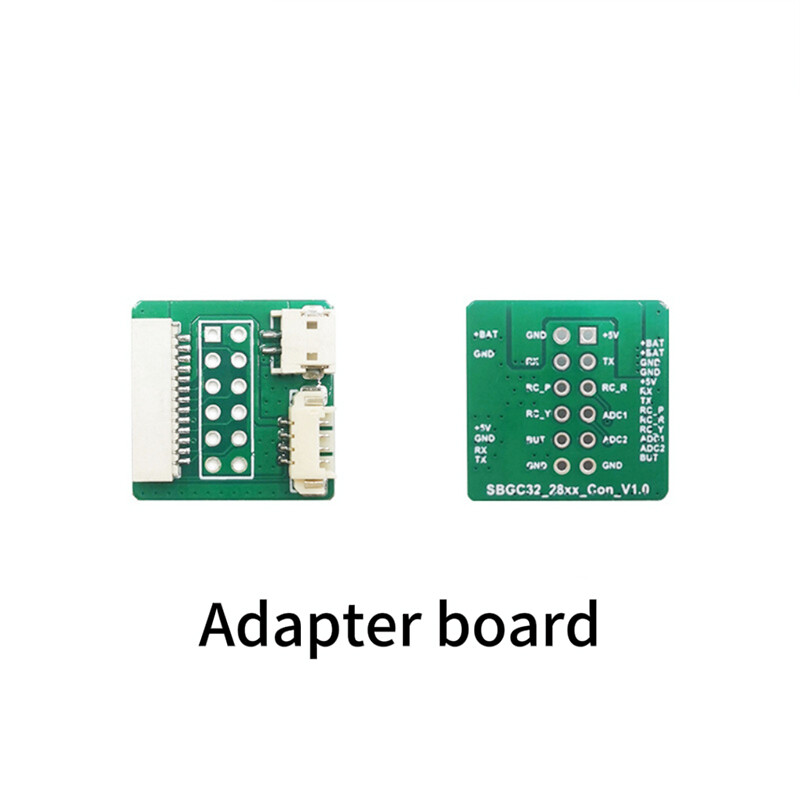

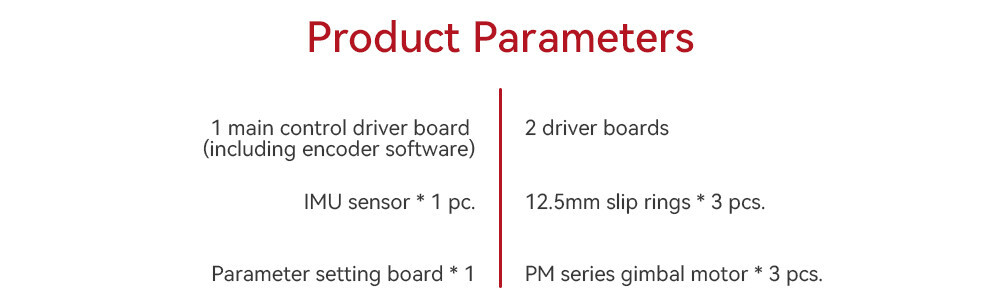

2. Composed of a main control board, roll axis driver module, tilt axis driver module, IMU module, USB interface board, and joystick board;

3. The connection between the three axes and the IMU is achieved via the I2C bus. The main board, driver module, and IMU module are connected using standard 5-pin JST connectors, which are user-friendly for wiring. The assembly and maintenance process is straightforward;

4. A 12-bit encoder is positioned at the center of each board, and the motor can operate in high-stability encoder mode with precise torque control.

Great.

5. Recommended power supply: 2S-4S LiPo batteries.

6. Multiple sequential ports available: PPM/PWM/SBUS/Bluetooth/joystick, etc.
